Description
Control Panel

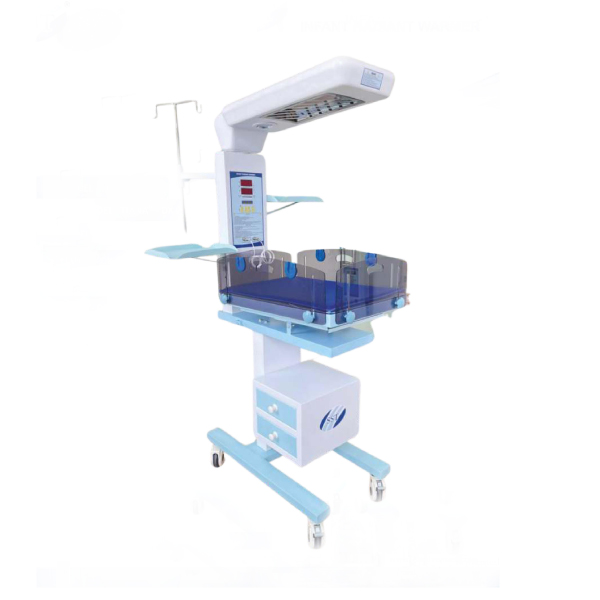

- The Tiana™ – Dx2 Infant Radiant Warmer comes with automatic and baby (Servo) modes.
- Big separate display for both skin and air temperature.
- Display can be converted from °C to °F by the push of a button.
- A big LCD is provided for more information and visualizations of the heater power in manual and servo modes.
Alarm
A full panel of alarms provides safety and convenience, with both audible and visual indicators in the event of:
- High Temp. / Low Temp.
- Probe Failure
- Power Failure
- Timer on
- Heater fail / ON (Optional) only visual alarm provided
Manual Mode
- The system automatically starts heating from 10 minutes in manual mode and the same can be changed through settings up to 100%.
- The system can be converted from servo mode to manual mode in case of probe failure thus providing nonstop working of the unit.
Air Mode (Optional)
- The system comes with air sensor.
- This added security cover with exclusive feature of switching OFF the heater in case the AIR temperature goes above 39°C irrespective of what the skin temperature is at the time of event.
Heater Assembly
- The heater assembly located above the centre of the support structure of an integral examination light and a 650 watts heating system.
- Silica / Quartz / Ceramic Heater for quick warming and even distribution of heat on the baby bed.
- The heater can be swivelled in either direction for taking X-ray and doing procedures.
Baby Bed
- The spacious baby bed incorporates easy drop down / fold down glasses for maximum access to the patient.
Castors
- The system is fitted with 3″ / 4″ high quality castors having brakes in front 2 castors.
Technical Specification
- The unit comes fitted with two drawer system which slides out for keeping consumables.
Optional:
- Antistatic Castors.
- LED Phototherapy Unit.
- X-ray Facility.
- °C to °F Conversion.
- Oxygen Flowmeter Assembly.
- Electric Slow Suction.
- Count Down.
- Pre Warming Mode.
